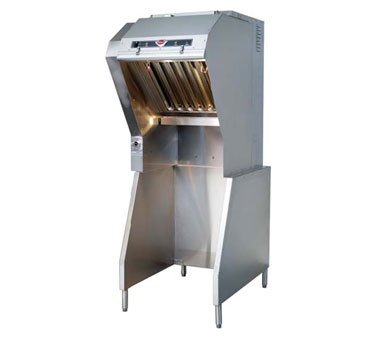

Wells - Ventless Hood for Up To 26" Cooking Zone - WVU-26

Fire Protection Completely self contained ANSUL R-102 system includes ANSUL tank, nitrogen cartridge, ANSUL sopanifier, piping, heat sensors, ANSUL drops, nozzles, and movable manual pull station. Manual pull can be relocated to the egress position or an additional station can be added by an authorized ANSUL representative. Fire protection system meets NFPA 96 Chapter 13. Fire protection system must be charged and certified by ANSUL Authorized distributor after installation and before first use (operator responsibility).

Filtration Completely self-contained filtration process reduces emissions below that allowed in NFPA 96 and ANSI UL710B using the EPA 202 test method and includes stainless steel grease baffle filter with grease cup, high-efficiency (Particulate Air) filter/ carbon-charcoal filter pack. All filters are easily removable with out tools. Air flow sensors continually monitor air flow optimizing performance and grease removal while an interlock system will not allow cooking appliances to function if filters are missing, clogged or in the event of a fire.

Cooking Appliances Only electrically heated appliances are acceptable for installation. Cooking equipment is optional from Wells or other manufacturers. Appliances must be installed as per manufacturers instructions and controlled thru the hood equipment shut-off interface through a customer supplied contractor which will disable cooking equipment in the event of fire or hood malfunction. For size, temperature and KW limits see back page or manual.

Exhaust and Air Flow Exhaust air is vertical discharge. Typical airflow is 800 CFM. A minimum of 400 cubic feet of fresh air per minute is recommended both in and out of the cooking area to ensure the dilution of cooking aromas.

• Completely self-contained, 3-stage filtration system
• Completely self-contained fire protections system accessible from the front
• Very quiet with only 68 dBA average
• Interlock system will disable cooking appliances if filters are missing, clogged or in the event of a fire
• Airflow sensors continually monitor airflow for optimizing performance and grease removal
• Illuminated early-warning system to monitor filter replacement
• Completely self-contained filtration process reduces emissions below that allowed in NFPA 96 and ANSI UL710B using the EPA 202 test method
• Two LED lights producing 990 lumens for improved visibility light colour temperature (cool white)
• Stainless steel construction for strength, durability and ease of cleaning
• Fits through a 36" wide door opening
• 6" to 8" adjustable legs (adjustable by 2" for leveling)
• Universal systems are movable making them ideal for leased properties
