The HD Series griddles are extra heavy-duty and feature a 3/4"griddle plate for quick pre-heat, even heat distribution and fast recovery.
This thermostatically controlled model provides precise operator controlled temperatures from 200° - 450°F (93°- 232° C). Each control features an adjustable air shutter to control air and optimize combustion. Additional specifications include removable stainless steel front panel for easy access to components, stainless steel side panels, stainless splash guard, full-width, front-mounted grease trough, removable large capacity drip pan for ease of clean-up and adjustable 4" heavy-duty steel legs. HD Gas Griddles ship natural gas and are field convertible to LP Gas with the conversion kit included.

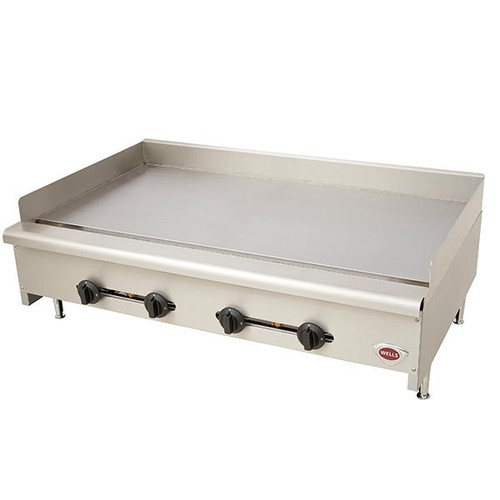

*NOTE: Image differs from product. Model HDTG4830G is shown.
- Thermostatic controls
- 200° - 450°F (93°- 232° C)
- Each burner has adjustable heat control, on/off control valves and adjustable air shutter for perfect combustion
- 3/4" griddle plate
- Stainless steel front, sides and splash guard
- Easily removable from panel
- Convertible from NG to LP – conversion kit included
- Large capacity, removable drip pan
- Full-width, front mounted grease trough
- 1 Year warranty against defects covers parts and labour
| Product Specifications | |
|---|---|
| Brand | Wells |
| Model | HDTG6030G |
| Series | HD |
| Type | Griddles |
| Fuel Type | Natural Gas / Liquid Propane |
| Controls | Thermostatic |
| Temperature Range | 200°F to 450°F / 93°C to 232°C |
| Cooking Surface - W x D | 60.1" x 23.75" |
| # of Burners | 5 |
| Total BTU - Natural Gas | 150,000 |
| Total BTU - Liquid Propane | 150,000 |
| Griddle Plate Thickness | 3/4" |
| Dimensions - WDH | 60.1" x 31.7" x 17" |
| Product Weight | 530 lbs / 240 kgs |
| Material | Stainless Steel |
| Certifications | NSF / cULus |
| Warranty | 1 Year |
