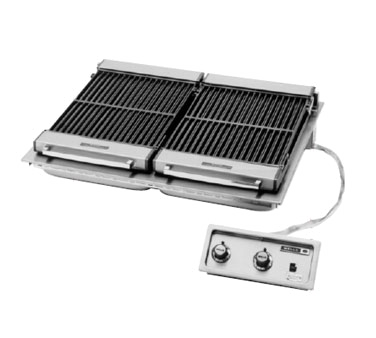

Wells B-506 Built-In Charbroiler, with a stainless steel top, is one of the most durable in the industry. Self-cleaning elements are protected by heavy-duty cast-iron grates and provide two heat zones for a variety of broiling options.
The Wells B-506 Built-In Electric Charbroiler is engineered for reliable performance and easy operation in demanding commercial kitchens. Its self-cleaning heating elements are positioned between the cast iron broiler grate ribs to protect against direct food contact and spatula abrasion while delivering both radiant and conductive heat for consistent, even cooking. Two independent infinite heat controls regulate each half of the cooking surface, providing flexible cooking zones with positive-off positions and power indicator lights for precise operation.
Designed for convenient maintenance, the broiler features removable cast iron grates, lift-out drip pans with built-in handles, and a spring-loaded support rod that securely holds the heating element assembly in the raised position during cleaning. The recessed one-piece stainless steel control panel helps prevent accidental temperature adjustments, while an included grate scraper/brush makes routine cleaning even easier.
Installation is simplified with the Wellslok mounting system, allowing quick and secure installation into stainless steel countertops. The unit also includes a terminal block for field connection to the main power supply. The Wells B-506 is UL Recognized, meets NSF International standards, and is backed by a one-year parts and labor warranty against defects.
*NOTE: Built to buyer’s specification, may not be returned.
- Self-cleaning heating elements
- Radiant and conductive heating
- Two independent heat controls
- Positive-off switches with power lights
- Heavy-duty cast iron grates
- Lift-out drip pans with handles
- Spring-loaded element support
- Recessed stainless steel controls
- Includes grate scraper/brush
- Wellslok built-in mounting system
- UL Recognized and NSF certified
- 1-year parts and labour warranty
| Product Specifications | |
|---|---|
| Brand | Wells |
| Model | B-506 |
| Type | Charbroilers |
| # of Burners | 2 |
| Cooking Surface - W x D | 32" x 20" |
| Cooking Area | 640 sq. in. |
| Electrical | 208V |
| Watts | 10,800 |
| Dimensions - WxD | 36.5" x 29.6" |
| Product Weight | 137 lbs / 62 kgs |
| Material | Stainless Steel |
| Warranty | 1 Year |
| Certifications | NSF / UL |
| Country of Origin | USA |
