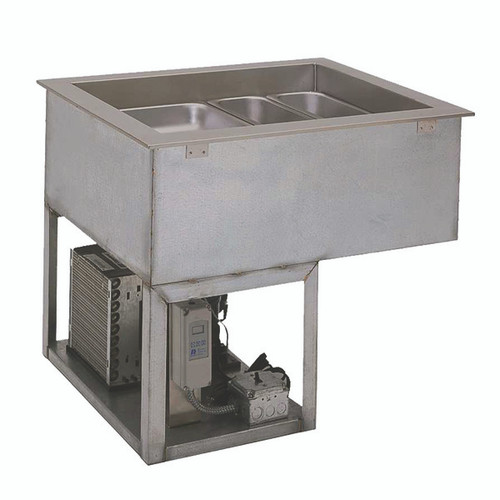

Wells Refrigerated Drop-In Cold Pans hold pre-chilled food products at cold, fresh and safe serving temperatures. All models are completely self-contained with individual thermostatic controls, are CFC free and include an 8 ft. 120V cord and plug. Pans are recessed 3" to comply with NSF-7 performance requirements.
EXTERIOR – One-piece top flange and coved-corner interiors constructed of 18 gauge stainless steel. Exterior body constructed of heavy gauge, corrosion resistant steel. Condensing unit mounted on corrosion resistant frame below the cold pan.
INTERIOR – CFC free foamed-in-place insulation throughout, 1" drain located in the centre for easy cleaning. Ledge is recessed 3" to comply with NSF-7 requirements, allowing a layer of air to insulate food and for pan support.
REFRIGERATION – Air cooled, type 404A CFC free refrigerant system featuring wrapped coil construction on both sides and bottom, individual thermostats, on/off switch, 8 ft. cord and plug set NEMA 5-15P. Refrigeration system features sight glass, easy service valves, dryer/filter and receiver. Condensing unit may be easily removed for service.
*NOTE: Image may differ slightly from product.
- 3" recessed top edge to comply with NFS-7 requirements
- Self contained drop-in design
- Holds standard 12" by 20" food pans and fractional sized pans
- Stainless steel top and liner for maximum strength and durability
- 1" drains for ease of cleaning
- On-off switch with 8 ft cord & plug for ease of installation and operation
- Type 404A CFC free refrigerant
- Fully insulated, CFC free, foamed-in place insulation keeps food cold while saving energy
- Recessed ledge for pan support and colder, fresher products
- Quick & easy service with sight glass, service valves, filter/dryer and receiver
- Limited 1 year parts & labour warranty
- Made in the USA
| Product Specifications | |
|---|---|
| Brand | Wells |
| Model | RCP-7300 |
| Type | Refrigerated Food Wells |
| # of Wells | 3 |
| Interior Depth | 21-7/8" |
| Interior Width | 41.25" |
| Cut Out Dimensions | 25-7/8" x 45.25" |
| Refrigerant | 404A |
| Electrical | 115V / 1Ph |
| Horsepower | 1/3 |
| Amps | 5.5 |
| Plug | NEMA 5-15P |
| Dimensions - DWH | 27-1/8" x 46.5" x 26-1/8" |
| Product Weight | 156 lbs / 71 kgs |
| Material | Stainless Steel |
| Warranty | 1 Year |
| Country of Origin | USA |
| Certifications | NSF / cULus |
| Series | RCP |
