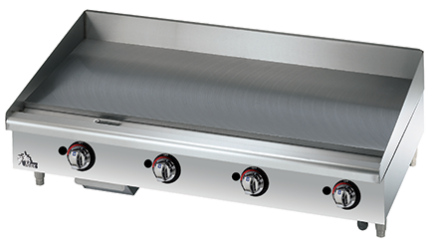

The Star-Max 648TCHSF 48" Gas Griddle with Thermostat Control is a compact yet powerful commercial cooking solution designed for precise temperature control and consistent performance. Featuring a 1" thick polished chrome griddle plate, this unit offers superior heat distribution, faster recovery times, and a smoother cooking surface that reduces food sticking and simplifies cleanup. The embedded modulating thermostat, positioned just 3/16" from the cooking surface, allows accurate temperature control from 150°F to 450°F with fast response to changes, ensuring consistent cooking results throughout service.
Built for durability and daily commercial use, the griddle features a heavy-duty stainless steel front with double-wall aluminized steel side panels for strength and heat efficiency. A 28,300 BTU aluminized steel burner per 12" of width ensures reliable, even heating across the cooking surface. The stainless steel bull nose front protects the thermostat knobs while providing a comfortable, cool-to-the-touch working area for operators.
Designed with ease of maintenance in mind, the unit includes a 3-1/4" wide front grease trough with grease chute and a large 4-1/2 quart stainless steel grease drawer for efficient cleanup. A 4-1/2" wrap-around stainless steel splash guard helps contain grease, while heavy-duty chrome-plated zinc knobs and adjustable nickel-plated steel legs ensure long-lasting performance and stability. The griddle operates on natural gas or propane and comes equipped with a convertible pressure regulator and LP conversion kit. Certified for safety and sanitation, it is approved for installation within 6" of combustible surfaces and is backed by a 2-year warranty.
- 48" gas griddle with 1" chrome plate
- Modulating thermostat (150°F–450°F) embedded in plate
- 28,300 BTU aluminized burner per 12" width
- Heavy-duty stainless steel front and aluminized steel sides
- Cool-to-touch stainless steel bull nose front
- 3-1/4" grease trough with grease chute
- 4.5-quart stainless steel grease drawer
- 4-1/2" wrap-around stainless steel splash guard
- Natural gas or propane operation
- Convertible regulator and LP conversion kit included
- Heavy-duty 4" adjustable legs
- UL Gas certified and UL EPH sanitation listed
- 2-year manufacturer's warranty
| Product Specifications | |
|---|---|
| Brand | Star |
| Series | Star-Max |
| Type | Griddles |
| Fuel Type | Natural Gas / Liquid Propane |
| Controls | Embedded Modulating Thermostat |
| Plate Material | Chrome |
| Temperature Range | 150°F - 450°F |
| # of Burners | 4 |
| BTU per Burner | 28,300 |
| Total BTU | 113,200 |
| # of Grease Drawers | 1 |
| Plate Thickness | 1" / 25 mm |
| Plate Depth | 20.5" |
| Dimensions - HWD | 15.5" x 48" x 29" / 393.7 x 1219.4 x 736.6 mm |
| Product Weight | 330 lbs / 149.7 kgs |
| Certifications | cULus / UL EPH |
| Country of Origin | USA |
| Warranty | 2 Years |
