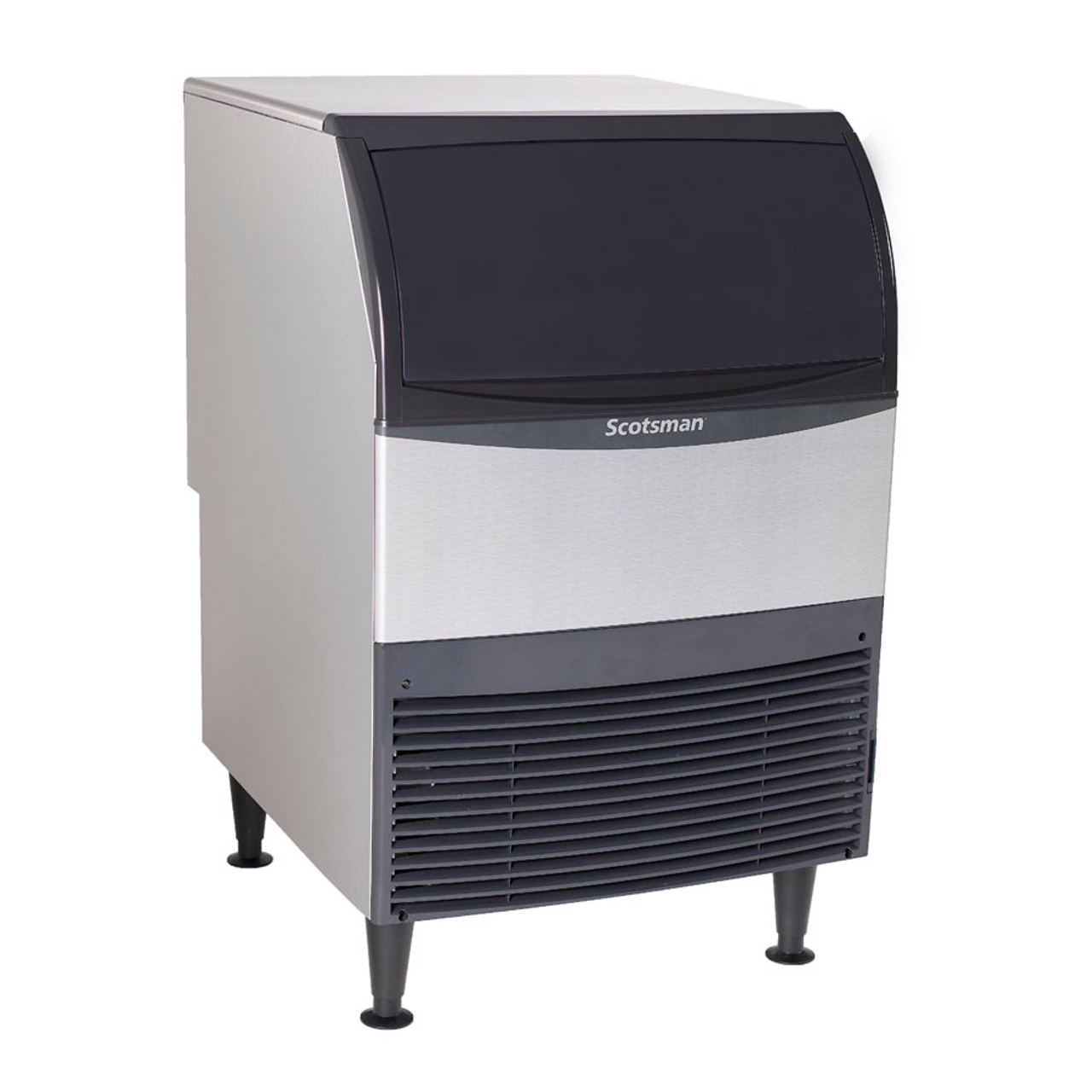

Scotsman - Undercounter 24" Width Air Cooled Medium Cube Ice Machine - 227 lb Production 80 lb Storage (115 Volts) Description
Space Saving Design:
- Only 24" wide, this ice maker can be placed it the tightest locations 90 Front breathing - No side clearance required for flexible placement 90 Recessed utility chase provides clearance for tight installs
- Optional floor mount kit lowers height to 33.5"
Ease of Use:
- Removable external air filter for easy cleaning
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Ergonomic slide back door allows easy access to ice in the bin
- Power cord, NEMA 5-15P plug, ice scoop and adjustable legs are included for quick and easy installation
Reliability:
- Heavy duty, rust-free front panel and corrosion-resistant aluminum alloy side panels for maximum lifespan
- 3 Year parts and labor warranty
- Designed, engineered and assembled in the USA
High Production:
- Produces up to 230 lb (104 kg) per day and stores 80 Ib (36 kg), maximizing ice output despite its small footprint
Environmentally Friendly:
- co Meets new US federal energy efficiency requirements
- Meets US Safe Drinking Act low lead requirements
- Non-ozone depleting R-134A refrigerant
| Product Specifications | |
|---|---|
| Brand | Scotsman |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| 24 Hour Ice Yield | 227 Pounds |
| Bin Storage Capacity | 80 lb. |
| Condenser Type | Air Cooled |
| Ice Type | Full Size Cubes |
| Installation Type | Undercounter |
| Made in America | Yes |
| NSF Listed | Yes |
| Type | Ice Machines |
| Dimensions | 24" W x 28.5" D x 39" H |
| Certification | ISO, NSF |
| Electrical Plug | NEMA 15-5 |
Warranty Information
3 years parts and labor on all components. 5 years parts on the compressor. Warranty valid in North, South & Central America for commercial installations. Contact factory for warranty in other regions. Residential Applications: 1 year parts and labor
