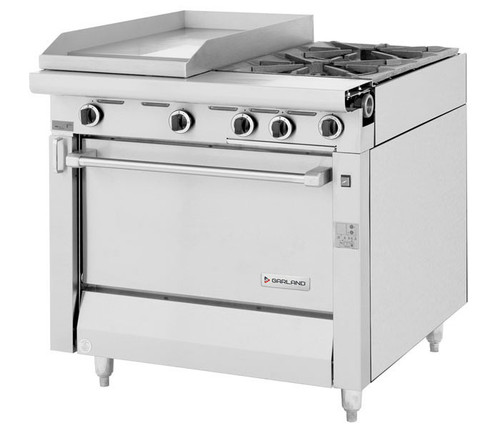

This heavy-duty gas range has a combination top with a standard oven. There is one 17" (432mm) W x 25" (635mm) D, 1" (25mm) thick, Hi-Lo valve griddle on left, 30,000 BTU (8.78kW), bordered side and rear by continuously welded stainless steel splash guard. Two 30,000 BTU (8.78kW) Starfire open burners with removable heads. Sentry total flame failure protection for all burners. Heavy duty cast iron top grates/ring grates on right only, 34" (864mm) W x 38" (965mm) D, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron burner. Stainless steel front and sides.
- Natural gas
- 6" (152mm) chrome steel adjustable legs
- 7-1/2" (191mm) stainless steel front rail
- Two 2-piece Starfire open burners with removable heads rated 35,000 BTU (10.25kW)
- Removable ring grates over each burner & cast iron top grates
- Stainless steel drip tray under open burners
- Griddle with 1" (25mm) thick steel plate on left, with 30,000 BTU (8.78kW) “H” type burner controlled by Hi-Lo valve
- 2-5/16" (59mm) high welded steel splash guards, sides & back for griddle
- Clip-on stainless steel backsplash for griddle plate
- Removable front-mounted stainless steel grease receptacle
- Fully porcelainized standard oven interior
- 4 position rack guides with 1 oven rack
- 40,000 BTU (11.72 kW) cast iron oven burner
- Electric spark ignition
- Sentry total flame failure protection for all burners
- 1-1/4" N.P.T. front manifold
- 1 Year warranty
This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com
Product Specifications | |
---|---|
Brand | Garland |
Model | MST42R-E |
Series | Master Sentry |
Type | Ranges |
Fuel Type | Natural Gas |
# of Open Burners | 2 |
# of Ovens | 1 |
# of Griddles | 1 |
Oven Burner BTU/Hr | 40,000 |
Griddle Burner BTU/Hr | 30,000 |
Open Burner BTU/Hr | 35,000 |
Total BTU/Hr | 140,000 |
Oven Burner kW | 11.72 |
Griddle Burner kW | 8.78 |
Open Burner kW | 10.25 |
Manifold Operating Pressure | 6" WC / 15 Mbar |
Legs | 6" (152mm) |
Interior Oven Dimensions - DWH | 29" x 26.25" x 13.5" / 737 x 667 x 343 mm |
Dimensions - DWH | 38" x 34" x 36-3/8" / 965 x 864 x 924 mm |
Certifications | CSA Flame / CSA Star / NSF / CE |
Warranty | 1 Year |
