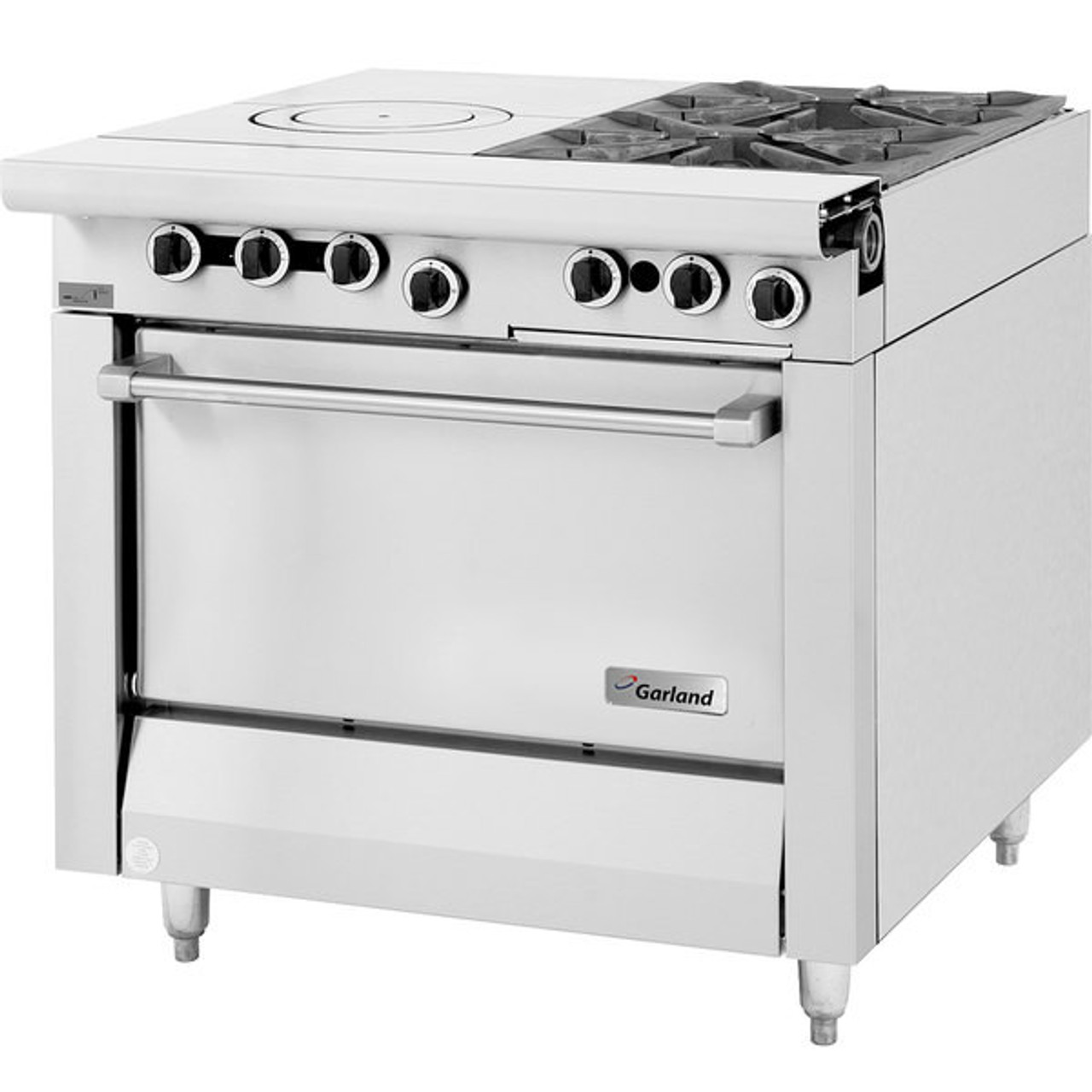

This heavy-duty gas range has a combination top with a standard oven consisting of one 17" (432mm) wide front fired spectro‑heat hot top, 30,000 BTU (8.78 kW) on left and two 35,000 BTU (10.25 kw) StarFire open burners. Sentry total flame failure protection for all burners. Heavy duty cast iron top grates/ring grates on right only, 34" (864mm) W x 38" (965mm) D, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 35,000 BTU (10.25 kW) cast iron burner. Stainless steel front with black powder epoxy sides.
- Liquid propane
- Stainless steel front; black powder coat epoxy sides
- 6" (152mm) chrome steel adjustable legs
- 7-1/2" (191mm) stainless steel front rail
- One heavy duty cast iron front‑fired top on left
- Removable cast iron ring and lid with 3 individually contolled jet burners; 30,000 BTU (8.78 kw) total
- Two (2), 2-piece Starfire open burners with removable heads rated 35,000 BTU (10.25 kW)
- On-off pilot valves for open burners
- Removable ring grate bowl over each burner
- Cast iron top grates
- One piece stainless steel drip tray
- Fully porcelainized standard oven interior
- 100% safety pilot for ovens
- 4 position rack guides with 1 oven rack
- 35,000 BTU (10.25 kW) cast iron oven burner
- Electric spark ignition
- Sentry total flame failure protection for all burners
- 1-1/4" N.P.T. front manifold
- 1 Year warranty
This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com
Product Specifications | |
---|---|
Brand | Garland |
Model | MST54R-E |
Series | Master Sentry |
Type | Ranges |
Fuel Type | Liquid Propane |
# of Open Burners | 2 |
# of Ovens | 1 |
# of Front Fired Hot Tops | 1 |
Oven Burner BTU/Hr | 35,000 |
Front Fired Hot Top BTU/Hr | 30,000 |
Open Burner BTU/Hr | 35,000 |
Total BTU/Hr | 135,000 |
Oven Burner kW | 10.25 |
Front Fired Hot Top Burner kW | 8.78 |
Open Burner kW | 10.25 |
Manifold Operating Pressure | 10" WC / 25 Mbar |
Legs | 6" (152mm) |
Interior Oven Dimensions - DWH | 29" x 26.25" x 13.5" / 737 x 667 x 343 mm |
Dimensions - DWH | 38" x 34" x 36-3/8" / 965 x 864 x 924 mm |
Certifications | CSA Flame / CSA Star / NSF / CE |
Warranty | 1 Year |
