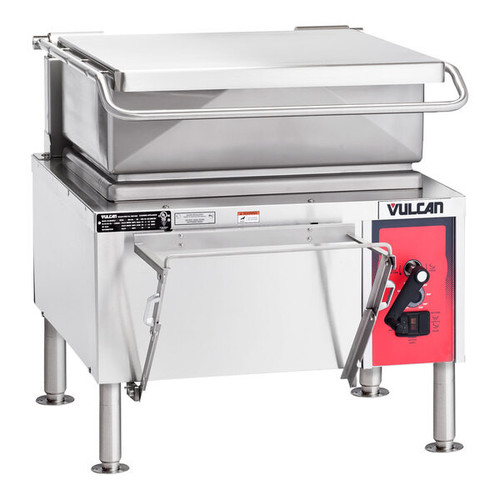

The Vulcan VE30 combines power, precision, and versatility in a 30-gallon, free-standing electric tilting braising pan designed for the demands of high-volume commercial kitchens. Ideal for browning, braising, sautéing, boiling, steaming, or holding food at serving temperature, the VE30 delivers outstanding performance and even heating with its advanced FastBatch rapid heating technology.
Built to last, the VE30 features a fully welded stainless steel frame with partially enclosed removable panels and 12-inch legs with adjustable flanged feet for stability and easy cleaning. The dual recessed hinges are mounted under the pan for a streamlined look and long-lasting durability. The pan itself includes coved interior corners for easy cleaning, a 9.75-inch depth for high-capacity cooking, and embossed gallon and liter markings for precise portioning.
The stainless steel-clad cooking surface features a .075-inch anti-stick layer bonded to a heavy ½-inch steel sub-plate. Embedded heating elements ensure superior heat distribution, fast recovery times, and consistent results across the entire surface. For safety, the heating elements automatically shut off when the pan is tilted more than 5°.
The pitcher-pour tapered front with oversized 4-inch flanges provides smooth, controlled pouring, while the formed lip with removable perforated strainer helps separate liquids and solids cleanly. The stainless steel spring-assisted cover includes a wrap-around, stay-cool handle and a condensate lip for comfortable and safe operation. The lid can also remain partially open for vented cooking.
A drop-away food receiving pan support conveniently mounts beneath the pouring lip, allowing for easy food transfer. The manual tilting mechanism features sealed gearing and a removable handle, requiring approximately 30 crank revolutions for a complete empty.
User-friendly solid-state temperature controls are housed in a watertight stainless steel enclosure with push-button operation. The thermostat is adjustable from 50°F to 425°F for precise temperature management across a wide range of cooking applications.
The Vulcan VE30 ships ready for 240/60-50/3 electrical service and can be field converted to 240/60-50/1, ensuring flexibility in installation. A faucet mounting bracket ships loose for left- or right-hand mounting if needed.
With its durable construction, FastBatch heating performance, and thoughtfully engineered design, the Vulcan VE30 delivers exceptional cooking efficiency and long-term reliability. UL Listed, UL Classified to NSF Standard #4, and compliant with Canadian safety standards, it comes backed by a one-year limited parts and labor warranty.
Cooking surface area: 29" x 23".
- FastBatch rapid heating technology and embedded heating elements for improved heating performance and even temperature distribution
- Stainless steel front, back, sides and 12" legs with adjustable flanged feet
- Dual recessed hinges mounted under stainless steel cooking pan featuring anti-stick finish, coved interior corners 1⁄4 size
- Embossed gallon and liter markings
- Anti-stick stainless steel clad cooking surface .075" thick bonded to steel sub plate 1⁄2" thick
- Pitcher pour tapered front with oversized 4" front flanges and formed pouring lip including removable perforated strainer
- Stainless steel spring assist cover with wrap around cool to the touch handle and condensate lip
- Lid stops in place for vented cooking
- Faucet mounting bracket (ships loose for LH or RH side mounting if needed) adds 3" to width
- Drop away food receiving pan support mounts under pouring lip Note: DOV3 only an option for 30-gallon unit
- Manually operated anti-jam pan lifting mechanism with removable handle; pan can be fully tilted to empty completely with approximately 30 crank revolutions
- Solid state temperature controls, thermostat adjustable from 50°F to 425°F
- Water tight controls and enclosures
- Shipped for 240/60-50/3 electrical service; can be field converted to 240/60-50/1
- One year limited parts and labour warranty
| Product Specifications | |
|---|---|
| Brand | Vulcan |
| Model | VE30 |
| Series | VE Series |
| Type | Braising Pans |
| Fuel Type | Electric |
| Capacity | 30 Gallons |
| Temperature Range | 50°F to 425°F |
| Cooking Surface | 29" x 23" |
| Electrical | 240V / 50-60Hz / 3Ph |
| Amps | 29.0 |
| kW | 12.0 |
| Certifications | cULus / NSF |
| Material | Stainless Steel |
| Warranty | 1 Year |
