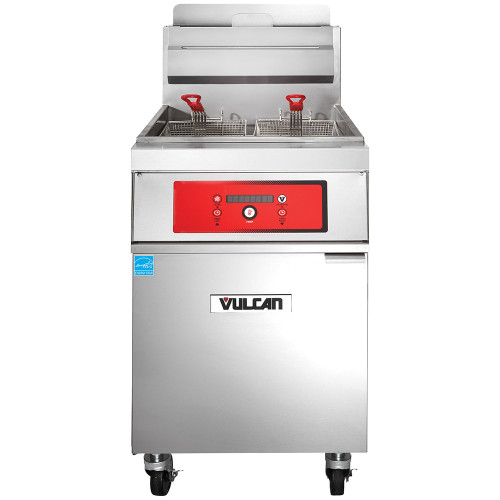

This fryer features a durable stainless steel cabinet paired with a stainless steel fry tank, designed for high performance and easy maintenance. It is equipped with a set of four 6-inch adjustable casters, two of which lock, allowing for stable placement and easy mobility in commercial kitchens.
As part of Vulcan’s PowerFry3 Series, this unit incorporates the patented ThreePass heat transfer system, which delivers exceptional energy efficiency, faster recovery times, and higher throughput. The fryer is ENERGY STAR certified, making it both cost-effective and environmentally friendly.
The SoftStart ignition system uses only 45,000 BTU/hr during start-up, significantly extending oil life by gently bringing the oil up to temperature. Once heated, the fryer maintains cooking temperature with an ultra-efficient idle rate of just 5,575 BTU/hr, reducing energy consumption without sacrificing performance.
For draining and cleaning, the unit includes a 1-1⁄4 inch port ball-type drain valve, along with a tank brush and clean-out rod for easy maintenance. It also comes with twin fry baskets featuring plastic-coated handles, ensuring safe and comfortable handling during busy service.
This high-performance fryer offers precise digital temperature control ranging from 200°F to 390°F, with easy-to-read displays available in either Fahrenheit or Celsius. Designed for efficiency, it delivers fast temperature recovery to maintain consistent cooking results during high-volume use. Operators can choose to cook using either compensating time or actual time, providing flexibility based on specific food requirements. The unit features reliable electronic ignition for safe and easy startup, along with three melt modes to accommodate a variety of cooking applications. Two independent countdown timers support multitasking, while the built-in auto boil-out mode simplifies cleaning and maintenance.
This unit is both CSA design certified and NSF listed, ensuring it meets rigorous safety and sanitation standards required in commercial foodservice environments.
- 90,000 BTU/hr. input
- Maintains idle temperature setting with only 5,575 BTU/hr. to save energy
- Energy saving SoftStart ignition system extends oil life while requiring lower BTU’s
- Energy Efficient ThreePass heat transfer system yielding 60% cooking efficiency and 72% Thermal Efficiency
- ENERGY STAR certified
- Stainless steel fry tank, 85 - 90 lb. capacity
- Includes 10 year limited tank warranty
- 1-1⁄4" port ball type drain valve
- Stainless steel cabinet
- Set of four 6" adjustable (2 locking) casters
- Twin fry baskets with plastic coated handles
- Hi-limit shut-off
- Electronic matchless ignition
- Tank brush and clean-out rod
- One year limited parts and labour warranty
| Product Specifications | |
|---|---|
| Brand | Vulcan |
| Model | 1TR85D |
| Series | TR |
| Type | Fryers |
| Fuel Type | Natural Gas |
| Capacity | 85-90 lbs |
| Tank Size | 19.5" x 18.25" |
| Controls | Digital |
| Temperature Range | 200 to 390°F |
| Fry Baskets | Twin |
| Ignition | Electronic |
| Plug | NEMA 5-15P |
| BTU per Hour | 90,000 |
| Working Height | 36.25" |
| Dimensions - WDH | 21" x 34-3⁄8" x 47-1⁄8" |
| Certifications | Energy Star / NSF / CSA |
| Material | Stainless Steel |
| Warranty | 1 Year |
| Tank Warranty | 10 Years Limited |
