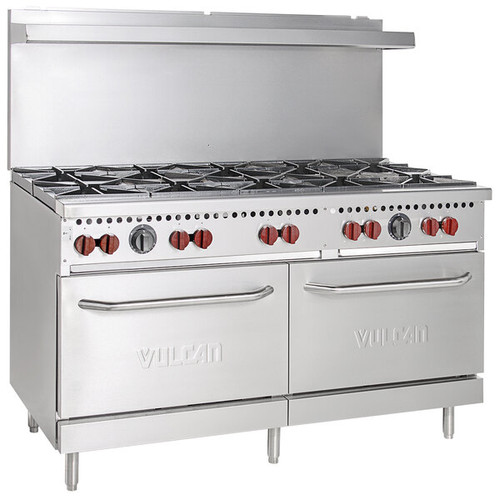

The Vulcan SX60-10B 60" Natural Gas Range delivers high-capacity performance for busy commercial kitchens that demand power, reliability, and space efficiency. As part of Vulcan’s SX Series, this value-focused range is designed for operations that require robust cooking capabilities without the premium price tag.
This model features ten 28,000 BTU per hour cast top burners, providing exceptional cooking power across a spacious 60-inch cooktop. Each burner includes a lift-off head for quick cleaning and maintenance. The 12" x 12" cast iron grates with integrated aeration bowls offer even heat distribution and can accommodate heavy cookware with ease.
Beneath the cooking surface are two standard ovens, each with a 30,000 BTU per hour input. The ovens are lined with porcelain for easy cleaning and long-term durability. Each oven includes one rack with four rack positions and offers a temperature range from 250°F to 500°F, making them ideal for baking, roasting, or holding.
Constructed with a stainless steel front, sides, backriser, high shelf, and bullnose, the SX60-10B is built for lasting durability in demanding kitchen environments. A compression spring door hinge system ensures smooth oven door operation and long-term reliability. The shrouded flash tube pilot system uses one pilot for every two burners, offering safe and efficient ignition across all ten burners.
At 60 inches wide, this range offers expansive cooking capacity while maintaining a space-conscious footprint relative to its performance. It includes a 3⁄4" rear gas connection and gas pressure regulator, along with 6" adjustable stainless steel legs for easy leveling. With a total input of 310,000 BTU per hour and backed by a one-year limited parts and labor warranty, the Vulcan SX60-10B is a powerful, value-driven solution for high-volume kitchens that need more from their equipment.
- Stainless steel front, sides, backriser, lift-off high shelf
- 6" stainless steel adjustable legs
- 28,000 BTU/hr open top burners with lift-off heads
- Shrouded flash tube pilot system (one pilot per two burners)
- 12" x 12" cast top grates with aeration bowls
- 30,000 BTU/hr standard oven cavity measures 26.75"w x 26"d x 13.75"h
- Oven thermostats adjust from 250° to 500°F
- One oven rack and four rack positions for each oven
- 3⁄4" rear gas connection and gas pressure regulator
- One year limited parts and labour warranty
| Product Specifications | |
|---|---|
| Brand | Vulcan |
| Model | SX60F-10B |
| Series | SX |
| Type | Ranges |
| Type | Ovens |
| Fuel Type | Natural Gas |
| # of Open Top Burners | 10 |
| BTU per Open Top Burner | 28,000 |
| Total Open Top BTU | 280,000 |
| # of Ovens | 2 |
| Temperature Range | 250°F to 500°F |
| BTU per Oven | 30,000 |
| Oven Dimensions - WDH | 26.75" x 26" x 13.75" |
| Total BTU | 340,000 |
| Dimensions - WDH | 60" x 33.25" x 60-3/8" |
| Warranty | 1 Year |
| Certifications | ETL |
