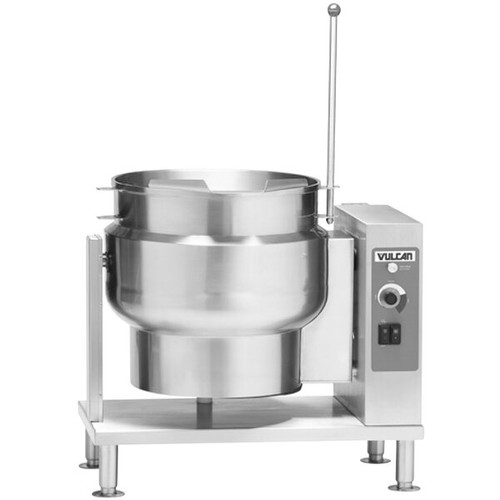

The Vulcan K20ETT is a compact powerhouse designed to deliver reliable, high-capacity performance in a countertop footprint. With a generous 20-gallon capacity—50% more than comparable models—this K Series electric tilting kettle is built for busy kitchens that need consistent results and long-term durability. Its thicker stainless steel rim and rugged construction make it ideal for restaurants, cafés, catering operations, and any establishment that serves large batches of soups, sauces, or seasonal favourites like hot chai cider.
The 2⁄3 jacketed, self-contained design ensures even, efficient heating. The ellipsoidal bottom kettle liner is formed and fully welded from type 316 stainless steel, with a type 304 stainless steel exterior for strength and corrosion resistance. A ¼ x ⅝-inch bar rim with a butterfly-shaped pouring lip provides smooth, controlled serving. Embossed gallon and liter markings are permanently stamped into the kettle for quick, accurate measurement every time.
The jacket is filled with a precise mixture of water, rust inhibitor, and antifreeze for protection down to 30°F below zero. Removable electric elements are fully field serviceable for easy maintenance, and the stainless steel tilt handle allows for safe, balanced pouring.
Stainless steel "water proof" control housing are located on the right. Controls include a power switch, power “on” light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-off.
The sturdy mounting base features stainless steel legs that extend 6" below the base. The unit ships configured for 208/60-50/3 electrical service but can be field converted to 208/60-50/1, 240/60-50/3, or 240/60-50/1, offering flexibility for any installation.
The Vulcan K20ETT is UL listed, UL classified for sanitation in accordance with ANSI/NSF Standard #4, and meets ASME code. Backed by a one-year limited parts and labour warranty, this electric countertop tilting kettle is built to deliver years of dependable service in demanding commercial kitchens.
- 2⁄3 jacketed self-contained electric tilting steam kettle
- Ellipsoidal bottom kettle liner formed and fully welded type 316 and type 304 stainless steel exterior
- 1⁄4 x 5⁄8 inch bar rim with butterfly shaped pouring lip
- Embossed gallon/liter markings
- Designed to operate at a maximum of 50 psi (3.4 kg/cm2 )
- Jacket contains water, rust inhibitor and antifreeze mixed to protect to 30° below zero
- Removable electric elements are field serviceable
- Stainless steel tilt handle with insulated pull knob located on the right
- Stainless steel "water resistant" control housing located on the right; controls include a power switch, power "on" light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-of
- Faucet bracket
- Stainless steel adjustable legs extend 6" below base
- Shipped for 208/60-50/3 electrical service; can be field converted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1
- One year limited parts and labour warranty
| Product Specifications | |
|---|---|
| Brand | Vulcan |
| Model | K20ETT |
| Series | K Series |
| Type | Steam Kettles |
| Fuel Type | Electric |
| Capacity | 20 Gallons |
| Steam Jacket | 2/3 |
| Bar Rim | 1/4" x 5/8" |
| Steam Jacket Rating | 50 psi / 3.4 kg/cm2 |
| Dimensions - WDH | 35.75" x 25.75" x 53.5" |
| Electrical | 208V / 50-60Hz / 3Ph |
| Certifications | cULus / NSF |
| Material | Stainless Steel |
| Warranty | 1 Year |
