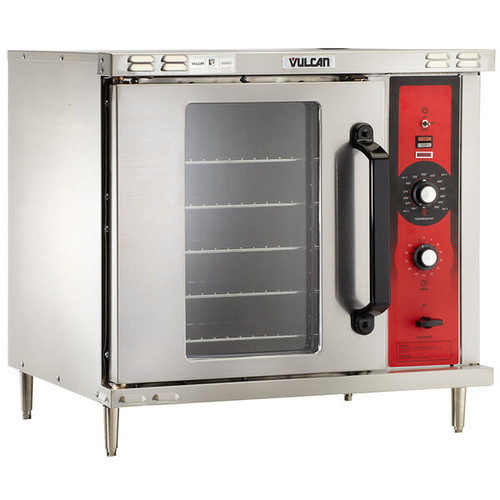

The Vulcan ECO2D Half Size Electric Convection Oven is a compact yet powerful cooking solution designed for commercial kitchens that need high performance in a smaller footprint. Ideal for cafés, bakeries, schools, and small restaurants, this single-deck oven delivers even, consistent results with energy-efficient operation and intuitive controls.
With an oven interior measuring 15.25" wide by 21" deep by 20" high, the ECO2D offers plenty of room for a variety of pan sizes. Its porcelain enamel on steel interior ensures durability, easy cleanup, and excellent heat retention. The oven is equipped with nine rack positions and five nickel-plated racks measuring 14-3/8" by 20-7/8", providing flexible configuration for different cooking needs.
Heating is provided by enclosed tubular elements rated at 5.5 kW, delivering reliable and even heat throughout the cavity. A two-speed ½ horsepower blower motor promotes efficient air circulation, ensuring consistent cooking results from top to bottom. The solid state controls allow for precise temperature adjustment between 200°F and 500°F. A 60-minute timer with a continuous-sounding buzzer helps keep cooking on schedule and enhances workflow efficiency. An oven cool switch allows rapid cooldown when the door is open—perfect for fast-paced kitchens.
Built for durability, the ECO2D features a stainless steel front, sides, and top enclosure panel, along with a stainless steel door that includes a double-pane viewing window and a cool-to-the-touch handle for operator safety. Stainless steel gaskets and full insulation on all sides—including the door, top, bottom, and rear—ensure safe, efficient performance. The oven stands on sturdy 4-inch adjustable chrome-plated legs, making it ideal for countertop or low-profile installation.
The unit is NSF listed, UL listed, UL certified to Canadian standards, and ENERGY STAR qualified, meeting stringent requirements for safety, sanitation, and energy efficiency. Backed by a one-year limited parts and labour warranty, the Vulcan ECO2D is a space-saving, energy-conscious convection oven built to perform reliably in demanding commercial environments.
- Stainless steel front, sides and top enclosure panel
- 4" adjustable chrome plated legs
- Stainless steel door with double pane window
- Cool to the touch oven door handle
- Stainless steel oven door gaskets
- 5.5 KW input
- Solid state temperature control adjusts from 200° to 500°F
- 60 minute electric timer with time expired buzzer
- 1⁄2 H.P. two speed fan motor
- Oven cool switch for rapid cool down when door is open
- Oven interior liners are porcelain on steel
- Nine position rack guide with five nickel plated racks
- One year limited parts and labour warranty
| Product Specifications | |
|---|---|
| Brand | Vulcan |
| Model | ECO2D |
| Series | ECO |
| Type | Ovens |
| Fuel Type | Electric |
| Controls | Solid State |
| # of Decks | 1 |
| Deck Size | Half |
| Oven Dimensions - WDH | 15.25" x 21" x 20" |
| Rack Dimensions | 14-3/8" x 20-7/8" |
| Temperature Range | 200 to 500°F |
| Timer | 60 Minutes |
| Horsepower | 1/2 |
| kW | 5.5 |
| Total kW | 5.5 |
| Electrical | 208V / 60Hz / 1Ph |
| Legs | 4" |
| Dimensions - WDH | 30" x 28.5" x 30-5/8" |
| Warranty | 1 Year |
| Certifications | NSF / cUL / Energy Star |
