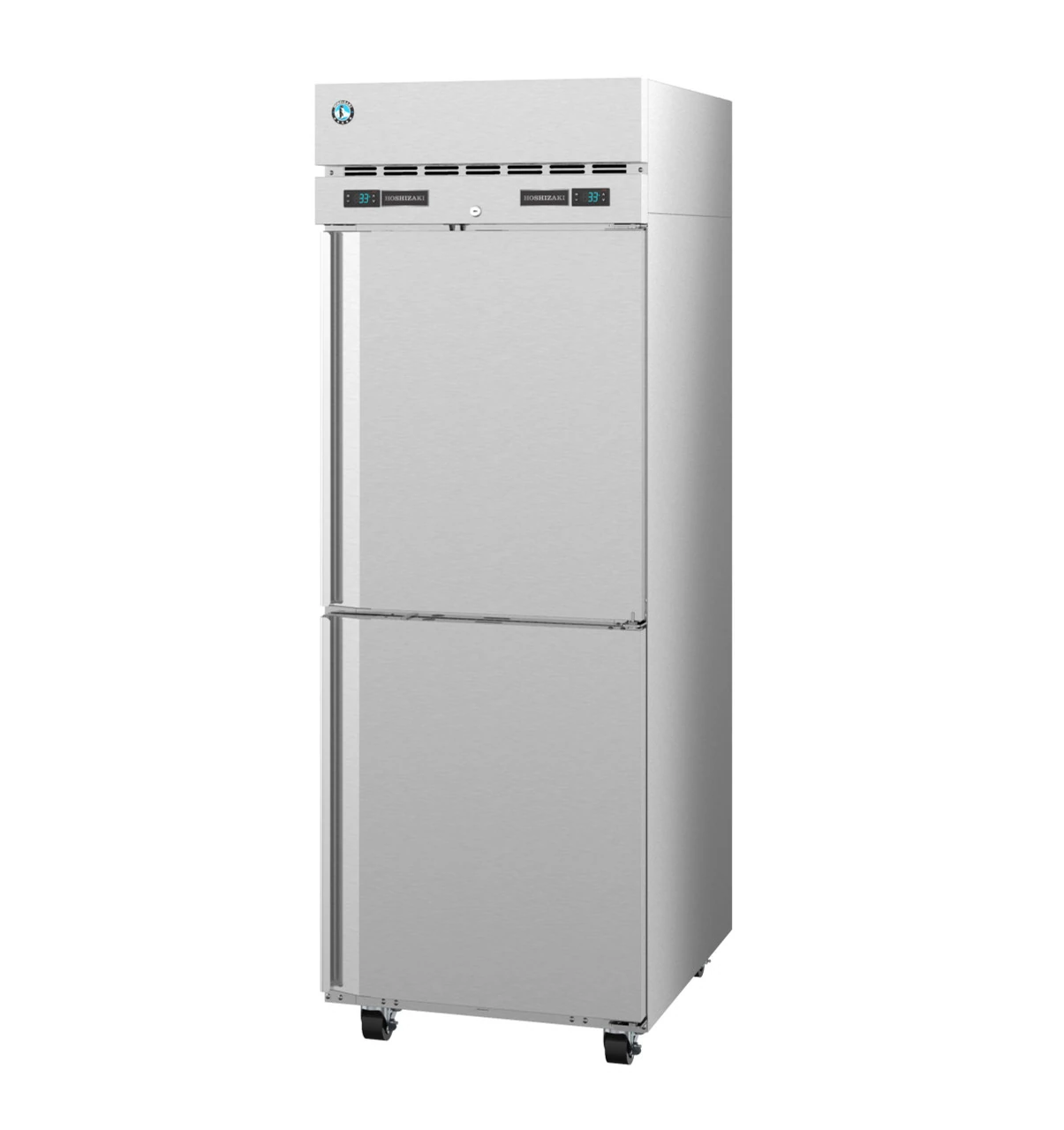

The DT1A-HS Steelheart Series Dual Temp single section refrigerator and freezer with a half stainless doors is a space-saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With an interior capacity of 10.19 cubic feet refrigerator and 10.19 cubic feet freezer, this efficient dual-temp refrigerator and freezer and front air flow design is perfect for hot/tight kitchens.
The DT1A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The DT1A-HS also includes an interior LED light bar that is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes), plus field reversible, spring-assisted self-closing doors with stay-open feature (no kit req’d). Electrical consumption of 4.49 kWh/day at 5.5 Amps, 10 ft long cord with a NEMA 5-15P plug. The unit is UL Listed, Conformité Européenne and includes a six years parts warranty, five years labour warranty, and seven years compressor warranty.
- Dimensions: 27.5″ W x 35″ D x 79.5″ H
- Interior capacity of 10.19 cubic feet refrigerator, 10.19 cubic feet freezer
- Exclusive “stepped” door design to protect recessed door gasket
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field-reversible, spring-assisted self-closing doors with stay-open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable half stainless doors
- Insulated with 2-3/8″ CFC free, foamed in place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- R-290 refrigerant
- (4) 4″ Stem Casters (2 with brakes)
- Includes 3 epoxy coated wire coated shelves
- 1/6 HP refrigerator and 1/5 HP freezer
- 115v/60/1
- 10 ft. cord and plug
- Top-mounted energy efficient non-electric evaporation system
- Six Years parts warranty, Five Years labour warranty, Seven Years compressor warranty
This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com.
| Product Specifications | |
|---|---|
| Brand | Hoshizaki |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| Amps | 5.5 Amps |
| Hertz | 60 Hertz |
| Capacity - Freezer | 10.19 cu. ft. |
| Capacity - Refrigerator | 10.19 cu. ft. |
| Compressor Location | Top Mounted |
| Material | Stainless Steel |
| Door Style | Swing |
| Door Type | Solid |
| Dutch Half Doors | Yes |
| Features | LED Lighting |
| Horsepower - Freezer | 1/5 |
| Horsepower - Refrigerator | 1/6 |
| # of Doors | 2 |
| # of Shelves | 3 |
| Refrigerant | R290 |
| Model | DT1A-HS |
| Type | Refrigerators/Freezers |
| Series | Steelheart |
| Dimensions | 27.5″ W x 35″ D x 79.5″ H |
| Door Opening | 21.75” W x 27.75” H |
| Depth with Door Open at 90° | 61.75" |
| Shelf Dimensions | 21.25” W x 26” D |
| Plug | NEMA 5-15P |
| Cord Length | 10' |
| Refrigerator Temperature Range | 33° to 52°F |
| Freezer Temperature Range | - 10° to 10°F |
| Voltage Range | 104 - 126V |
| Ambient Temp. Range | 45° to 100°F |
| Energy Consumption (kWh/day) | 4.49 |
| Heat Rejection (BTU/Hr) | Fridge 168 / Freezer 439 |
| Approx. Nominal Compres. BTU/HR | Fridge 988 / Freezer 1354 |
| Refrigerant Charge Amount | Fridge 2.1 oz. / Freezer 2.5 oz. |
| Certifications | AQ / KCL / ETL / cETLus |
| Country of Origin | USA |
| Warranty | 5 Years Labour / 6 Years Parts / 7 Years Compressor |
