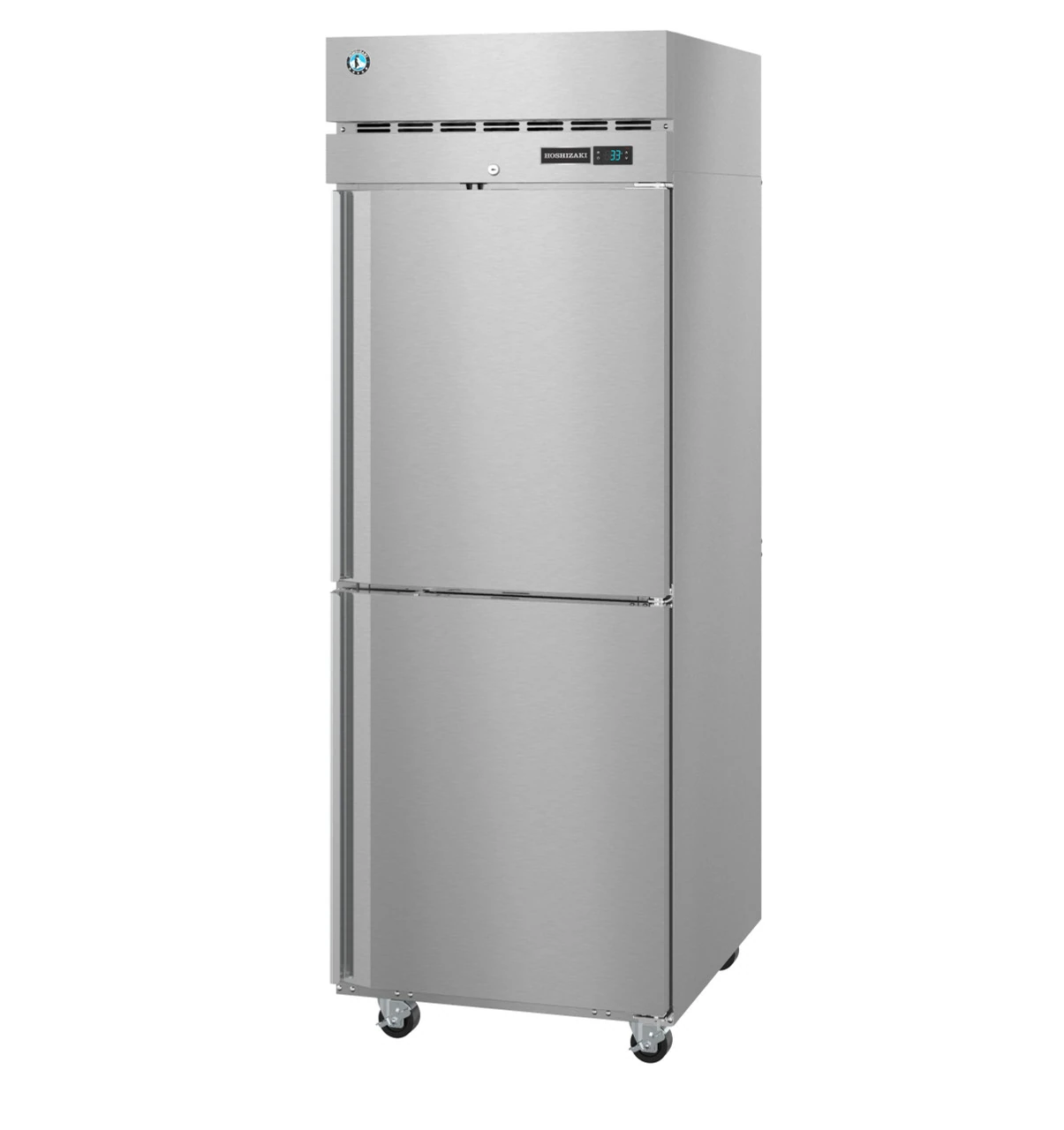

The F1A-HS Steelheart Series upright single section freezer with half stainless doors is a space-saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet, this efficient upright freezer and front air flow design is perfect for hot/tight kitchens.
The F1A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The F1A-HS also includes an interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus field-reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 6.25 kWh/day at 8.46 Amps, 10 ft long cord with a NEMA 5-15P plug. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labour warranty, and seven years compressor warranty.
- Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 23.1 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field-reversible, spring-assisted self-closing doors with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable stainless doors, left hand swing
- Insulated with 2-3/8″ CFC free, foamed-in-place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes)
- Includes 3 epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
- 3/4 HP
- 115v/60/1
- 10 ft. cord and plug
- Top-mounted energy efficient non-electric evaporation system
- Six Years parts warranty, Five Years labour warranty, Seven Years compressor warranty
This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com.
| Product Specifications | |
|---|---|
| Brand | Hoshizaki |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| Hertz | 60 Hertz |
| Compressor Location | Top Mounted |
| Material | Stainless Steel |
| Door Style | Swing |
| Door Type | Solid |
| Dutch Half Doors | Yes |
| Features | Self-Closing Doors / LED Lighting |
| Hinge Location | Right |
| Horsepower | 3/4 |
| # of Doors | 2 |
| # of Shelves | 3 |
| Refrigerant | R290 |
| Temperature Range | -10° to +12°F |
| Model | F1A-HS |
| Type | Freezers - Stainless Steel |
| Series | Steelheart |
| Dimensions | 27.5″ W x 33.5″ D x 79.5″ H |
| Door Opening | 21.75” W x 27.75” H |
| Depth with Door Open at 90° | 59.25" |
| Shelf Dimensions | 21.25” W x 26” D |
| Plug | NEMA 5-15P |
| Cord Length | 10' |
| Voltage Range | 104 - 126V |
| Ambient Temp. Range | 45° to 100°F |
| Energy Consumption (kWh/day) | 6.25 |
| Heat Rejection (BTU/Hr) | 1178 |
| Approx. Nominal Compres. BTU/HR | 1425 |
| Refrigerant Charge Amount | 4.1 oz. |
| Certifications | AQ / KCL / ETL / cETLus |
| Country of Origin | USA |
| Warranty | 5 Years Labour / 6 Years Parts / 7 Years Compressor |
| Capacity | 23.1 cu. ft. |
| Amps | 8.46 |
