The KM-660MAJ is capable of producing approximately 650 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications.
This Air-cooled, Slim Line Modular icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain.
The KM-660MAJ requires a single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included.

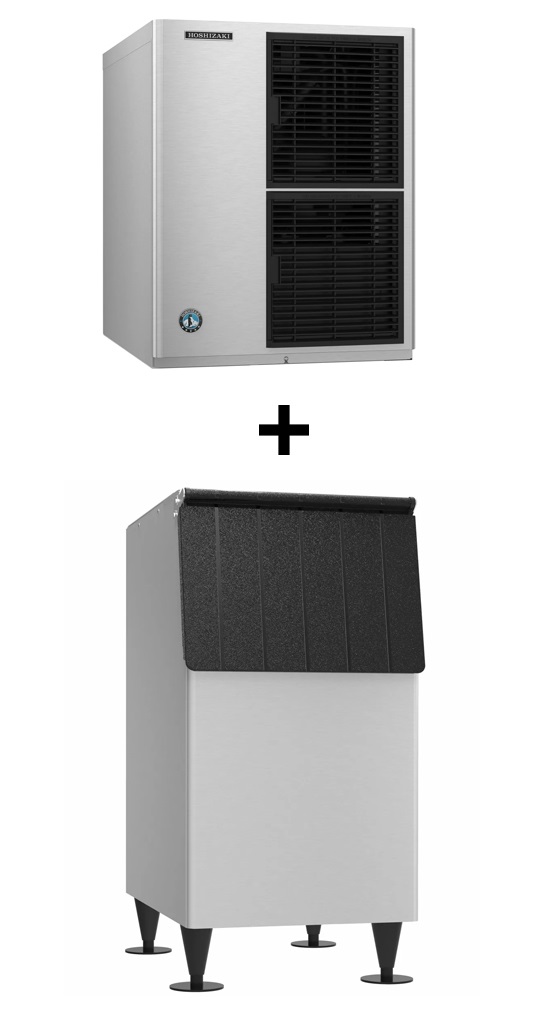

*NOTE: Compatible bins & dispensers are sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.
- Up to 650 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- EverCheck alert system
- CycleSaver design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labour warranty on entire machine
- Five Years: Parts & Labour warranty on evaporator
This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com.
| Product Specifications | |
|---|---|
| Brand | Hoshizaki |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| Amps | 15.2 Amps |
| Hertz | 60 Hertz |
| 24 Hour Ice Yield | 650 lbs |
| Condenser | Air |
| Cube Type | Crescent |
| Model | KM-660MAJ |
| Type | Ice Machines |
| Refrigerant | R-404a |
| Refrigerant Charge Amount | 1 lb. 9.8 oz |
| Ice Production Air/Water Temp 70°/50°F | 650 lbs / 24 hr |
| Ice Production Air/Water Temp 90°/70°F | 560 lbs / 24 hr |
| Water Usage Per 100 lbs | 14.8 Gallons |
| kWh Usage Per 100 lbs | 5.3 |
| Min. Circuit Amp - Max. Fuse/Breaker | 20A |
| Circuit Wires (including ground) | 3 |
| Heat Rejection BTU/hr | 8,000 |
| Ambient Temp Range | 45 - 100°F |
| Water Temp Range | 45 - 90°F |
| Water Pressure | 10 - 113 PSIG |
| Voltage Range | 104 - 127V |
| Certifications | AQ / KCL / NSF / AHRI / UL |
| Country of Origin | USA |
| Warranty | 3 Years Machine / 5 Years Evaporator / 5 Years Parts Compressor |
| Material | Stainless Steel |
| Dimensions - WDH | 22″ x 27-3/8″ x 28″ |
| Series | KM Edge |
