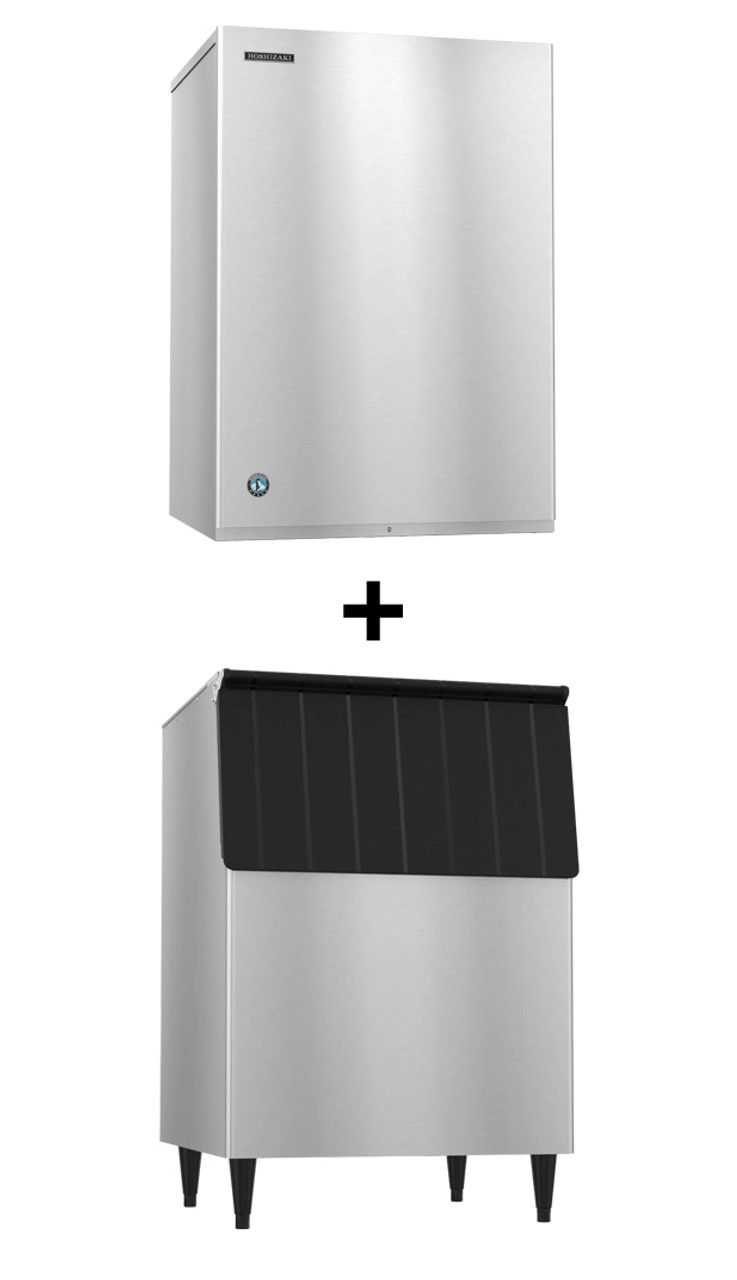

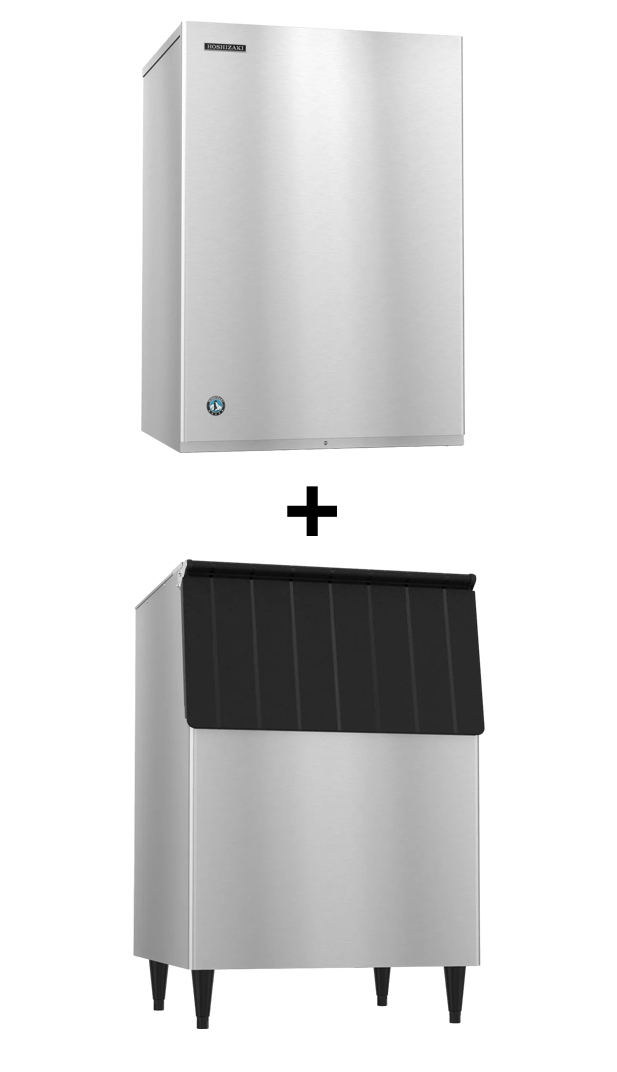

The KM-1601MRJZ is capable of producing approximately 1594 lbs of crescent cubed ice. Mount 2 units side-by-side for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications.
This remote-cooled with URC-22FZ icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain.
The KM-1601MRJZ requires a single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030 - sold separately) is required.
*NOTE: Remote condenser is sold separately. Safely store up to 500 lbs of ice with this B-500SF 30″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-500SF features a durable stainless steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes standard with 6″ painted legs and a top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL verified, NSF and includes a three year parts & labour warranty. This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com.
| Product Specifications | |
|---|---|
| Brand | Hoshizaki |
| Model | KM-1601MRJ |
| Type | Ice Machines |
| Series | KM Edge |
| Condenser | Remote |
| Cube Type | Crescent |
| Ice Production Air/Water Temp 70°/50°F | 1594 lbs / 24 hr |
| Ice Production Air/Water Temp 90°/70°F | 1550 lbs / 24 hr |
| Potable Water Usage Per 100 lbs | 18 Gallons |
| kWh Usage Per 100 lbs | 4.35 |
| Max. Fuse Sz or HACR Circuit Bkr | 20A |
| Amps | 15.9A |
| Voltage | 208-230V/60/1 |
| Circuit Wires (including ground) | 4 |
| Heat Rejection BTU/hr | 24,300 |
| Refrigerant | R404a |
| Refrigerant Charge Amount | 8 lbs. 2.5 oz. / 15 lbs. 14 oz. w/Condenser |
| Ambient Temp Range | 45 - 100°F |
| Water Temp Range | 45 - 90°F |
| Water Pressure | 10 - 113 PSIG |
| Voltage Range | 187 - 253V |
| Certifications | AQ / KCL / NSF / AHRI / UL |
| Warranty | 3 Years / 5 Years Evaporator / 5 Years Parts Compressor |
| Dimensions - WDH | 30" x 27-3/8" x 41-5/8In |
| Country of Origin | USA |
| Bin Storage Capacity | 500 lbs |
| Liner Material | Polyethylene |
| Model | B-500SF |
| Type | Ice Bins |
| Dimensions - WDH | 30In x 32.3In x 46In |
| Interior Dimensions - WDH | 27In x 27.7In x 37.6In |
| Cubic Volume | 16.33 cu.ft. |
| Warranty | 3 Years |
| Certifications | AQ / KCL / ETL / NSF |
