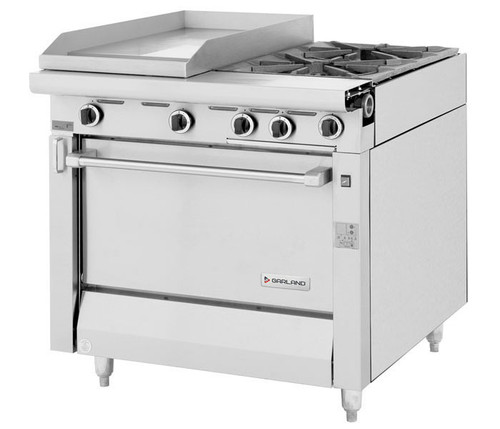

This heavy-duty gas range with oven, Model M42R has a combination top. There is one 17" (432mm) W x 25" (635mm) D, 1" (25mm) thick, Hi-Lo valve griddle on the left that is bordered by a continuously welded stainless steel splash guard and two 32,000 BTU (9.37kW) Starfire open burners with removable heads on the right. The porcelain enamel oven interior has a 35,000 BTU (10.25kW) cast iron burner. This unit features stainless steel front/sides and a 7.5" (191mm) deep stainless steel front rail.
- Liquid propane
- Stainless steel front and sides
- 6" (152mm) chrome steel adjustable legs
- 7.5" (191mm) stainless steel front rail
- Two 2-piece Starfire open burners with removable heads
- Removable ring grates over each open burner & cast iron top grates
- Stainless steel drip tray under open burners
- 17" Griddle with 1" (25mm) thick steel plate on left, with “H” type burner controlled by Hi-Lo valve
- 2-5/16" (59mm) high welded steel splash guards, sides & back for griddle
- Clip‑on stainless steel backsplash for griddle plate
- Removable front‑mounted stainless steel grease receptacle
- Fully porcelainized oven interior
- Piezo Spark ignition for oven
- Cast iron oven burner
- 1 Year warranty
This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com
| Product Specifications | |
|---|---|
| Brand | Garland |
| Model | M42R |
| Series | Master |
| Type | Ranges |
| Fuel Type | Liquid Propane |
| # of Open Burners | 2 |
| # of Ovens | 1 |
| # of Griddles | 1 |
| Oven Burner BTU/Hr | 35,000 |
| Griddle Burner BTU/Hr | 33,000 |
| Open Burner BTU/Hr | 32,000 |
| Total BTU/Hr | 132,000 |
| Oven Burner kW | 10.25 |
| Griddle Burner kW | 9.66 |
| Open Burner kW | 9.37 |
| Manifold Operating Pressure | 10" WC / 25 Mbar |
| Legs | 6" (152mm) |
| Interior Oven Dimensions - DWH | 29" x 26.25" x 13.5" / 737 x 667 x 343 mm |
| Dimensions - DWH | 38" x 34" x 36-3/8" / 965 x 864 x 924 mm |
| Certifications | CSA Flame / CSA Star / cCSAus / NSF / CE |
| Warranty | 1 Year |
