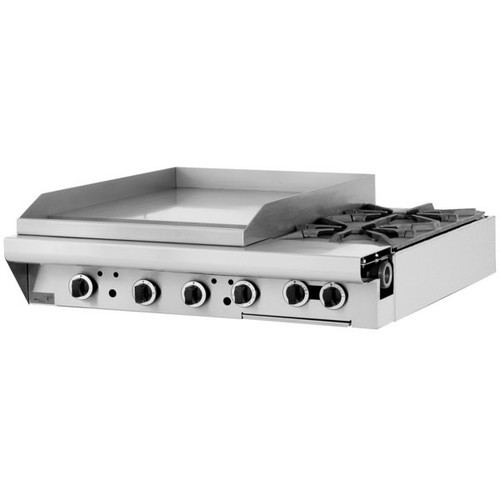

This heavy-duty modular top gas range, Model M47-23T has a combination top. There is one 23" (548mm) W x 25" (635mm) D, 1" (25mm) thick valve-controlled griddle, bordered side and rear with continuous welded stainless steel splash guards, 66,000 BTU (19.3kW) total, on the left. There are two 20,000 BTU (5.86 kW) Starfire open burners with heavy duty cast iron top grates/ring grates on the right. This unit is 34" (864mm) W x 38" (965mm) D, including 7.5" (191mm) deep stainless steel front rail. Stainless steel front and sides.
- Liquid propane
- Stainless steel front and sides
- 7.5" (191mm) stainless steel front rail
- Valve controlled griddle on left with 1" (25mm) thick steel griddle plate & two 33,000 BTU (9.67kW) “H” burners
- 2-5/16" (591mm) H welded steel splashguards, sides & back
- Clip-on stainless steel backsplash
- Removable front-mounted stainless steel grease receptacle
- Two 20,000 BTU (5.86 kW) Starfire burners per section
- Removable ring grates over each burner
- One-piece stainless steel drip tray
- 1 Year warranty
This item is not warehoused by Williams Food Equipment, processing times, delivery times and availability may vary. If this item is required by a certain date, please contact Williams Food Equipment before ordering to ensure delivery times can be met. It may not be possible to cancel this item once ordered and may be non-returnable. If returnable this item may be subject to restocking charges and return delivery fees outside of the control of Williams Food Equipment. If you have any questions about this item or the terms above, please call us at 1-888-334-3233 or email us at commercial@williamsfoodequipment.com
Product Specifications | |
---|---|
Brand | Garland |
Model | M47-23T |
Series | Master |
Type | Ranges |
Fuel Type | Liquid Propane |
# of Open Burners | 2 |
# of Griddles | 1 |
Griddle Burner BTU/Hr | 33,000 |
Open Burner BTU/Hr | 20,000 |
Total BTU/Hr | 106,000 |
Griddle Burner kW | 9.67 |
Open Burner kW | 5.86 |
Manifold Operating Pressure | 10" WC / 25 Mbar |
Dimensions - DWH | 38" x 34" x 9.5" / 965 x 864 x 241 mm |
Certifications | CSA Flame / CSA Star / cCSAus / NSF / CE |
Warranty | 1 Year |
