Specifically designed to handle high production demands of a varied menu while conserving space, energy and oil.
The 11814E large capacity electric fryers have 60-lb. (30 liter) frypot oil capacity with an 18” x 14” x 4.75” (45.7 x 35.6 x 10.8 cm) cooking area per frypot. The ability to cook three baskets of food in an 18” x 14” x 4.75” cooking area allows for footprint, oil use and energy use reductions over standard 50-lb fryers. Two 11814E fryers can do the work of three standard fryers and two 11814E fryers combined with an RE17 fryer allows three fryers to do the work of four standard fryers. The savings add up quickly using 15-20% less oil, upwards of 33% less energy, and 10-15% less space.
Frymaster’s proprietary self-standing, swing-up, flat-bar, low-watt density, long-life heating elements and controls ensure industry-leading energy efficiency.
The robust RTD, 1° Compensating temperature probe, mounted on the elements, ensures precise temperature readings. The thermostat system minimizes temperature overshoot maximizing oil life. It also compensates for variations in cooking loads, consistently producing high-quality food.
The SMART4U Lane controller has programmable cook buttons and features that make it easy to produce consistent, great-tasting food. The bottom of the frypots are sloped toward the front and are equipped with a large drain line so crew members can quickly flush out sediment and remove old oil.
The built-in filtration models make it easy to preserve oil life and maintain food quality. The built-in filter utilizes an 8 GPM (30 LPM pump and is equipped with a 3” (7.61 cm) drain line, making filtering fast, safe and easy. The “built-in” feature puts filtration within the fryer battery where it’s most convenient to use.

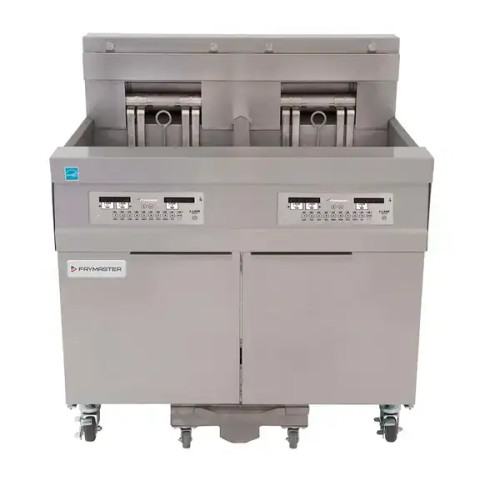

*NOTE: Image differs from product. Model shown may depict additional options not included.
- 208V / 3Ph
- 18” x 14” x 4.75” (45.7 x 35.6 x 10.8 cm) frying area per frypot
- Open pot design
- Rack-type basket support
- Uses 60 lbs. (30 liters) of oil per frypot
- Cooks three twin baskets of food at the same time
- 17 kw input per frypot meets high production demands
- SMART4U Lane controller has programmable cook buttons & features that make it easy to produce consistent great-tasting food
- Proprietary, self-standing, swing-up, flat-bar low-watt density long-life heating elements
- High energy efficiency and production capacity
- Robust, RTD 1° compensating temperature probe
- Stainless steel frypot, door and cabinet sides
- Sturdy stainless steel basket hangers
- Three twin baskets per frypot
- Comes standard with filtration and casters
- 1 Year warranty
Product Specifications | |
---|---|
Brand | Frymaster |
Model | 21814EF |
Series | 1814 |
Fuel Type | Electric |
# of Fry Pots | 2 |
Capacity per Frypot | 60 lbs |
Total Capacity | 120 lbs |
Frying Area per Frypot | 18” x 14” x 4.75” / 45.7 x 35.6 x 10.8 cm |
kW | 17 |
Electrical per Frypot | 208V / 3Ph / 48A |
Controls per Frypot | 1A |
Filter | 5A |
Drain Height | 11.5" / 29.2 cm |
Dimensions - DWH | 30-7/8" x 40" x 45-3/8" / 78.4 x 101.6 x 114.9 cm |
Certifications | Energy Star / UL / cULus / NSF / EnerLogic |
Material | Stainless Steel |
Warranty | 1 Year |
Type | Fryers |
