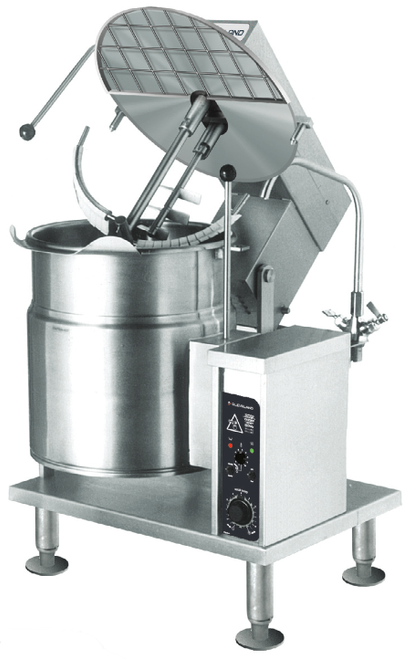

Cleveland offers the most technically advanced product line of steam jacketed Mixer Kettles available today. The combination of rapid heat transfer via steam heating and the hydraulically powered stirring/scraping action, go together to produce quality food quickly and efficiently.
The stirring / scraping effect (produced by the main Agitator and
secondary Agitator) not only thoroughly mixes the product, but it
also reduces heating and cooling times dramatically. This unit also features a large pouring lip.
Re-inforced rolled rim design prevents damage to kettle rim, eliminates "bar rim designs".
Kettle and all exterior surfaces are of type 304 stainless steel with an #4 finish.
Infinitely variable speed for all conditions; scraper from 0-70 rpm, agitator from 0-210 rpm.
Removable (without tools) Nylon Blades scrape entire jacketed surface.
3/4 horse power D.C. Timing Belt Drive.
Safety Device prevents High Speed Starts.
Mixing stops when bridge is lifted.
Agitator and Scraper are bayonet mounted for easy removal.
Enclosed, balanced, 10 Gauge Stainless Steel Mixer Bridge.
Gallon Markers on Scraper Shaft.
Built into trunnion.
Factory installed.
50 PSI (3.5 Bar) for faster cooking.
Interchangeable for left or right operation.
| Product Specifications | |
|---|---|
| Brand | Cleveland |
| Model | MKDT12T |
| Type | Steam Kettles/Mixers |
| Style | Tabletop |
| Capacity | 12 Gallons / 45 L |
| Electrical | 120V / 60Hz / 1Ph |
| Wires | 3 |
| Dimensions - DWH | 31-1/8" x 23-7/8" x 45.5" |
| Certifications | NSF / ASME |
| Country of Origin | North America |
